EBICS Server post-processing

About post-processing

EBICS Server provides two integrated post-processing processes to forward files received during send transactions to Axway Gateway or to Axway Messaging. These processes enable you to export signatures received by EBICS Server to a dedicated XML file. The XML file can then be used to create a proof. If a transfer to Gateway or Messaging fails, the post-processing can be restarted from the EBICS Server UI or from the Java API.

Gateway post-processing

Overview

Here are the different stages of the send transaction with Gateway post-processing:

An EBICS Client sends a file to the EBICS Server with a given order type and with signature(s).
The server decodes the send message and validates the signature(s).
Depending on order type, the server launches the appropriate Gateway post-processing:
- Copies file to a given directory
- Generates an XML file containing signature(s) if required
- Executes a script to call the peltrans command
Gateway sends the file to the back-end.

Note: The data and signature files are not removed at the end of the post-processing.

Script to call Gateway

In order to call Gateway, the post-processing needs to call one script. If FULorderParam is set to TEST, a different script can be called.

By default, the post-processing calls the exitPostprocessing scripts delivered with EBICS Server. The default scripts are provided in <EBICS Server installation directory>/Send/scripts/.

The script can be replaced by any other script.

The called scripts obtain some parameters through system properties.

List of system properties

Property	Value
Bank	Host ID of the bank
EbicsId	EBICS Host ID of the bank
Customer	ID of the customer
UserId	ID of the user. If two users signed the files, the second user will be identified by UserId_2 property.
OrderNumber	Order number of the send transaction
OrderTypeBL	Send order type Example: FUL.pain.xxx.400.vct
TestParam	TRUE if FULorderParam contains TEST, otherwise FALSE
Filename	Name of the data file For more information about the file name, see "File naming conventions" later in this section.
AbsoluteFilePath	Complete file path of the data file
SignatureFilename	Name of the signature file
AbsoluteSignatureFilePath	Complete file path of the signature file
NbOfSignatures	Number of signatures of the data file
EBICSROOT	Path of the EBICS Server installation
TRACKINGOBJECT	Name of the Tracking Object used to notify Sentinel
SentinelCycleID	Sentinel Cycle ID for notification
RESTART_POSTPROCESSING	TRUE if the post-processing is manually restarted, otherwise FALSE

Configuration

You configure the Gateway post-processing is the same way as any other post-processing, via the menu Processing > Post processing. For an example, see EBICS Server example: Create a post-processing.

Complete the following fields:

Field	Description
File directory	Path to the directory where the sent file is to be copied
Export signature proof	Check this box if you want to export the signature file
Signature proof directory	Path to the directory where the signature files are to be dumped
UserId	Add userId into the name of the file and signature file
Gateway transfer launching script	Path to the script to run. If empty, the default script is used
Gateway transfer launching script if TEST parameter is set	Path to the script to run when sent with test parameter. If empty, the default script is used

Messaging post-processing

Overview

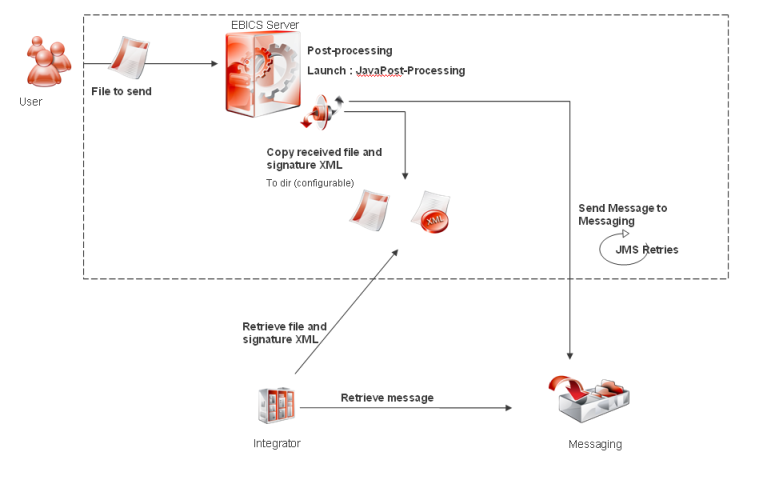

Here are the different stages of the send transaction with Messaging post-processing:

An EBICS Client sends a file to the EBICS Server with a given order type and with signature(s).
The server decodes the send message and validates signature(s).
Depending on order type, the server launches the appropriate Messaging post-processing:
- Copies file to a given directory
- Generates an XML file containing signature(s) if required
- Sends a message to Messaging
Integrator receives the message from Messaging.
Integrator receives the data and signature files.

Note: The data and signature files are not removed at the end of the post-processing.

List of properties

Property	Value
Bank	Host ID of the bank
EbicsId	EBICS Host ID of the bank
Customer	ID of the customer
UserId	ID of the user. If two users signed the files, the second user will be identified by Signer2 property.
OrderNumber	Order number of the send transaction
OrderTypeBL	Concatenation of send order type and file format. Example: FUL.pain.xxx.400.vct (OrderType.FileFormat)
OrderType	Send order type. Example: FUL
FileFormat	Send file format. Example: pain.xxx.400.vct.
TestParameter	TRUE if FULorderParam contains TEST, otherwise FALSE
OP_<CUSTOM>	If any custom order parameters were set, they will be available by adding the prefix "OP_". For example, if an EBICS Client set the custom order parameter MYPARAM, it will be accessible through the property OP_MYPARAM.
Filename	Name of the data file. For more information about the file name, refer to "File naming conventions" in this topic.
AbsoluteFilePath	Complete file path of the data file
SignFilename	Name of the signature file
SignDirectoryName	Complete file path of the signature file
NbOfSignatures	Number of signatures of the data file
DirectoryName	Path of the EBICS Server installation
TrackingObject	Name of the Tracking Object used to notify Sentinel
SentinelCycleID	Sentinel Cycle ID for notification
ServerDate	EBICS Server current date in milliseconds (UNIX format)
ProcessingRestarted	TRUE if the post-processing is manually restarted, otherwise FALSE

Configuration

You configure the Messaging post-processing is the same way as any other post-processing, via the menu Processing > Post processing. For an example, see EBICS Server example: Create a post-processing.

Complete the following fields:

Field	Description
File directory	Path to the directory where the sent file is to be copied
Export signature proof	Check this box if you want to export the signature file
Signature proof directory	Path to the directory where the signature files are to be dumped
UserId	Add userId into the name of the file and signature file
Hostname	Hostname of the Messaging server
Port	TCP port of the Messaging server
User	Name of the Messaging technical user. This must be filled only if security is activated in Messaging
Password	Password of the Messaging technical user. This must be filled only if security is activated in Messaging
Queue name	Name of the reception Queue inside the Queue manager of Messaging server
Queue manager name	Local Queue name manager
Max retries	Number of retries performed if EBICS Server is not able to connect to Messaging. After attempting this max number, the post-processing will fail. Default = 1
Delay (seconds)	Waiting time (in seconds) between two attempts. Default = 50 seconds

File naming conventions

Gateway post-processing and Messaging post-processing copy data files and signature files to a local folder with the same naming convention.

The naming convention for the data file is:

ORDERTYPE_ORDERNBR_USERID_CUSTID_EBICSHOSTID_DATE_TEST

The naming convention for the signature file is:

ORDERTYPE_ORDERNBR_USERID_CUSTID_EBICSHOSTID_DATE_TEST.signature

Notes:

USERID is set only if the option Add UserId is checked.
TEST is not set if test mode is not activated (FULorderParam)

Restarting post-processing

If a post-processing process has failed, you can restart it from the UI or from the Java API.

Restarting post-processing from the UI

From the UI, you can restart post-processing on all files that have been received with the status "terminated" or "error".

In the Files menu, select a post-processing process you want to restart and click the Detail button.
Click Add an Administrative remark.
Enter a meaningful remark.
Select action: Set state to "finished" and do post-processing (again).
Finally, click the Add an Administrative remark button.

Restarting post-processing from the Java API

The following example restarts a post-processing process that failed for bank Bank1, customer Customer1, user User1 of type FUL.pain.001.001.02.mct from Yesterday to Today.

public static void main(String[] args) throws IllegalArgumentException, EbicsException

{

Calendar cal = Calendar.getInstance();

cal.add(Calendar.DAY_OF_MONTH, -3);

Configuration configuration = new Configuration("localhost",
1099, ConnectionType.JBOSS, "admin", "start".toCharArray(), false);

EbicsApi api = EbicsApi.getInstance();

api.init(configuration, "ctx1");

Transaction transaction = api.getContext("ctx1").createTransaction();

try

{

if (transaction == null)

throw new Exception("An error occurred, could not create transaction");

Date today = new Date();

Date yesterday = new Date();

PostprocessingManager.getInstance().restartPostProcessing(transaction, yesterday, today,
"Bank1", "Customer1", "User1", PostProcessingOrderState.ERROR, "FUL.pain.001.001.02.mct");

api.getContext("ctx1").terminateTransaction(transaction);

}

catch (Exception e)

{

e.printStackTrace();

api.getContext("ctx1").cancelTransaction(transaction);

}
