ADVANCED ROUTING: Set Flow Attributes in a Custom AR Step
Overview
The Set Flow Attributes Advanced Routing (AR) step enables creation and/or modification of file flow attributes during file transformation and routing in SecureTransport Advanced Routing. It can be used in any place of the Advanced Routing process chain.
For more information on Flow Attributes, please refer to the Flow and subscription attributes section in the ST Administrators Guide.
Prerequisites
SecureTransport 5.5-20201029 or higher.
Download
The custom Set Flow Attributes AR Step's installation package can be downloaded from the AMPLIFY Repository.
Installation
To install the Set Flow Attributes AR step, perform the following steps on all SecureTransport Server nodes:
Delete the following files/folders associated with the previous version of this step (if they exist):
<FILEDRIVEHOME>/plugins/routingSteps/axway-step-setflowattributes.jar
<FILEDRIVEHOME>/plugins/routingSteps/axway-step-setflowattributes
The existing Custom Step configurations in ST will be preserved.
Extract the securetransport-plugins-step-setflowattributes-<plugin_version>.zip
into <FILEDRIVEHOME>/plugins/routingSteps
Restart all SecureTransport services
Configuration
To configure a Set Flow Attributes AR step:
Navigate to the Admin UI → User Accounts → <account> → Routes page.
Click the New Route button.
Select Set Flow Attributes from the Select Step list.

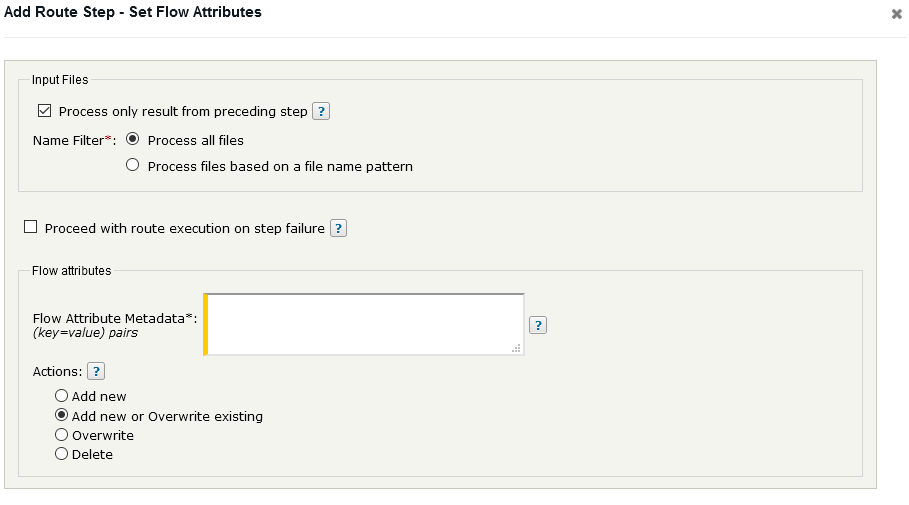

The following configuration settings are displayed:
Flow Attributes configuration settings
Flow Attribute Metadata - required field
The specified key=value
pairs metadata will be stored in ST file flow attributes of the transformed file. Each metadata mapping must be on a separate line. The key=value
pairs will be evaluated using ST expression language where the available Advanced Routing, flow attributes, LDAP and environment variables can be accessed via the plugin.
prefix, e.g.:
Environment variables |
${plugin.env['DXAGENT_HOMEDIR']} , ${plugin.env['DXAGENT_USERUID']} , ...
|
---|---|
Transfer variables |
${plugin.transfer.target} , ${plugin.transfer.coreId} , ...
|
LDAP variables |
${plugin.ldap.domainName} , ${plugin.ldap.dn} , ...
|
Flow attributes |
${plugin.flow.attributes['Test']} , ${plugin.flow.attributes['userVars.test']} , ...
|
Actions
When you add the step to your Advanced Routing Application, you can select from 4 different options what should happen with the defined attributes:
Add new - this option will add the attribute only if it does not exist in the context.
Add new or overwrite existing - this option will add the attribute to the context no matter if it exists or not.
Overwrite - this option will add the attribute only if it already exists in the context.
Delete - this option will delete the specified attributes.
Use case
Navigate to the Admin UI → User Accounts → <account> → Routes page.
Click the New Route button.
Select Set Flow Attributes from the Select Step list.
Add the metadata key=value
pairs in Flow Attribute Metadata field, e.g. test=test1234
.
Select an action, e.g. Add new or Overwrite existing.

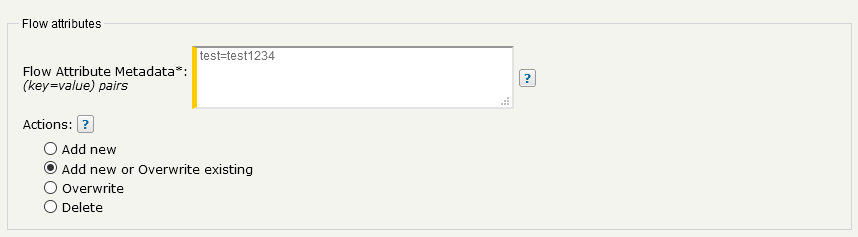

Flow Attributes configuation example
Add a Rename Step to the Route.
To use the flow attribute setup in the previous step enter the following expression in the Output File Names field: ${flow.attributes['test']}
.
New file name using the Flow Attributes configuration in the previous Step
Add a Publish To Account Step and configure it as usual. You can publish to the same account as well.
Save the Route package.
Assign the Route to a Subscription.
Login to ST with the user and upload a test file, e.g TestFile.txt
to the AR subscription folder.
The file is sent to the account from the Publish Step, via PTA, with a new name test1234
.

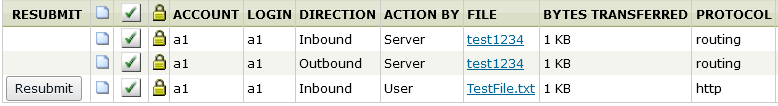

File Tracking records
Troubleshooting and Notes
To enable extended debug logging, edit the <FILEDRIVEHOME>/conf/tm-log4j.xml
config file. Find the com.axway.st.plugins.routing
logger element and set its level
value to DEBUG.
To access the file's flow attribute set by the Set Flow Attributes Step use the expression - ${flow.attributes['metadata_key']}
, where the metadata_key
is the key from key=value
pair in the Step configuration. If you want to use the userVars.
prefix it should be added as a prefix to the key, e.g userVars.test
and the expression would be ${flow.attributes['userVars.test']}
.
The Set Flow Attributes Step can be configured using the /routes
ST Admin REST API endpoint. The REST API definition of the Set Flow Attributes Step is available in Swagger YAML file format under <FILEDRIVEHOME>/plugins/routingSteps/axway-step-setflowattributes
.
